Golen LEG-250K / 500K-TT-B Commercial Power Conversion System (PCS)

The Golen LEG-250K/500K-TT-B Commercial Power Conversion System (PCS) is a high-performance bidirectional inverter designed for large commercial and industrial (C&I) energy storage applications.

As an Authorized Golen C&I Partner in Kenya and East Africa, Solar Man Power Solutions Ltd supplies, installs, and commissions this advanced PCS for businesses seeking reliable battery storage integration, peak shaving, backup power, and hybrid energy solutions.

⚡ What Is a Commercial PCS?

A Power Conversion System (PCS) is the core component of a Battery Energy Storage System (BESS). It converts:

• 🔄 AC → DC (to charge batteries)

• 🔄 DC → AC (to discharge power to loads or grid)

This enables intelligent energy management for:

• Manufacturing plants

• Hospitals

• Shopping malls

• Data centers

• Commercial buildings

• Solar + Storage hybrid systems

📊 Available Models

🔹 LEG-250K-TT-B

• Rated Power: 250 kW

• Max Apparent Power: 275 kVA

• DC Voltage Range: 600–880 V

• Max Output Current: 397 A

• 3-Phase 400 V Output

• Efficiency up to 96%

• 100% Unbalanced Load Support

🔹 LEG-500K-TT-B

• Rated Power: 500 kW

• Max Apparent Power: 550 kVA

• DC Voltage Range: 600–880 V

• Max Output Current: 793 A

• 3-Phase 400 V Output

• Efficiency up to 96%

• Industrial-grade transformer isolation

🚀 Key Features

✔ Grid-Connected & Off-Grid Operation
✔ Seamless integration with Lithium Battery Systems
✔ Active & Reactive Power Control
✔ Peak Shaving & Load Shifting Capabilities
✔ Diesel Generator Hybrid Support
✔ Cold Start Capability
✔ 100% Three-Phase Unbalanced Load Handling
✔ DSP Digital Control System
✔ Modbus-RTU / Modbus-TCP Communication
✔ Touchscreen Interface
✔ Industrial Protection Systems

🏭 Designed for Commercial & Industrial Applications

This Commercial Power Conversion System in Kenya is ideal for:

• Peak demand reduction (lower KPLC bills)

• Backup power for critical loads

• Solar + Storage hybrid systems

• Microgrids

• Industrial load stabilization

• Energy arbitrage

📐 Physical Specifications

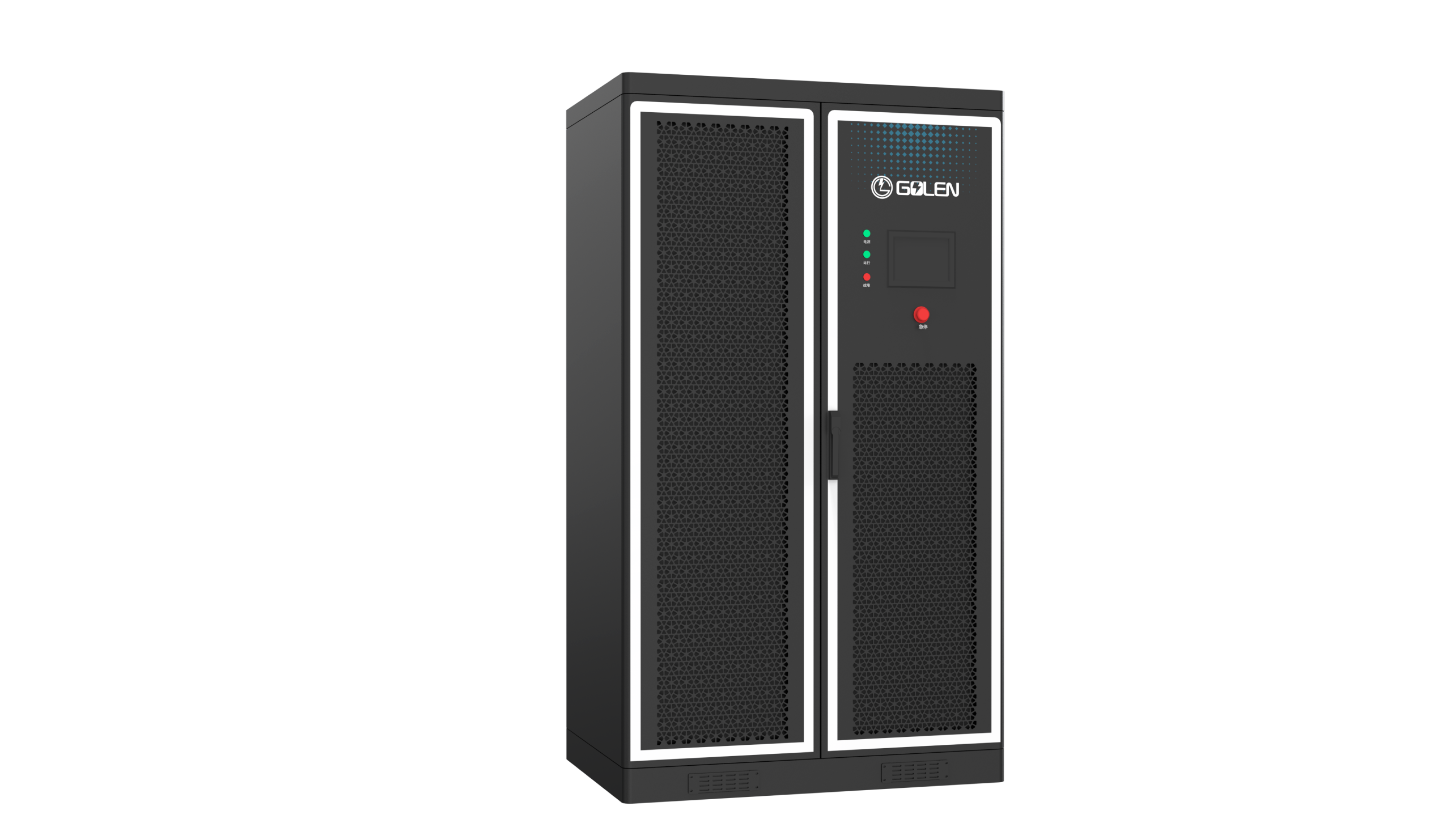

LEG-250K-TT-B

• Weight: 1600 kg

• Dimensions: 1200 × 800 × 2100 mm

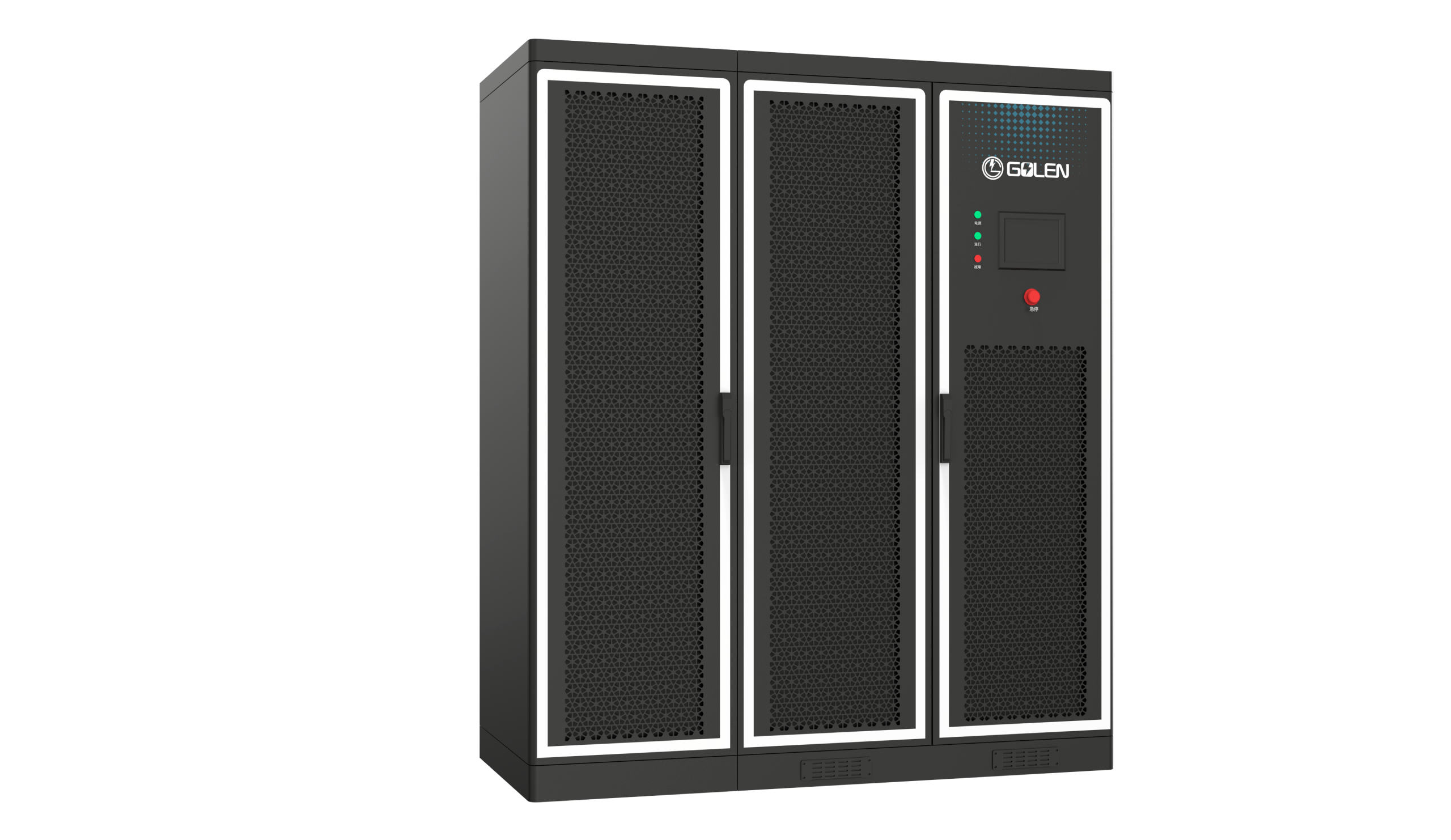

LEG-500K-TT-B

• Weight: 3000 kg

• Dimensions: 1600 × 1040 × 2200 mm

Operating Temperature: −30°C to +55°C
Altitude: Up to 4000m (derating above 3000m)

🔒 Protection & Reliability

• DC Overvoltage Protection

• AC Overvoltage Protection

• Short Circuit Protection

• Reverse Polarity Protection

• Overtemperature Protection

• Isolation Transformer Built-In

• Industrial Forced-Air Cooling

Built for demanding African commercial environments.

🇰🇪 Authorized Supplier in Kenya & East Africa

Solar Man Power Solutions Ltd is an Authorized Golen C&I Energy Storage Partner providing:

• System Design & Engineering

• Grid Studies & Load Analysis

• Installation & Commissioning

• After-Sales Technical Support

• Maintenance Contracts
