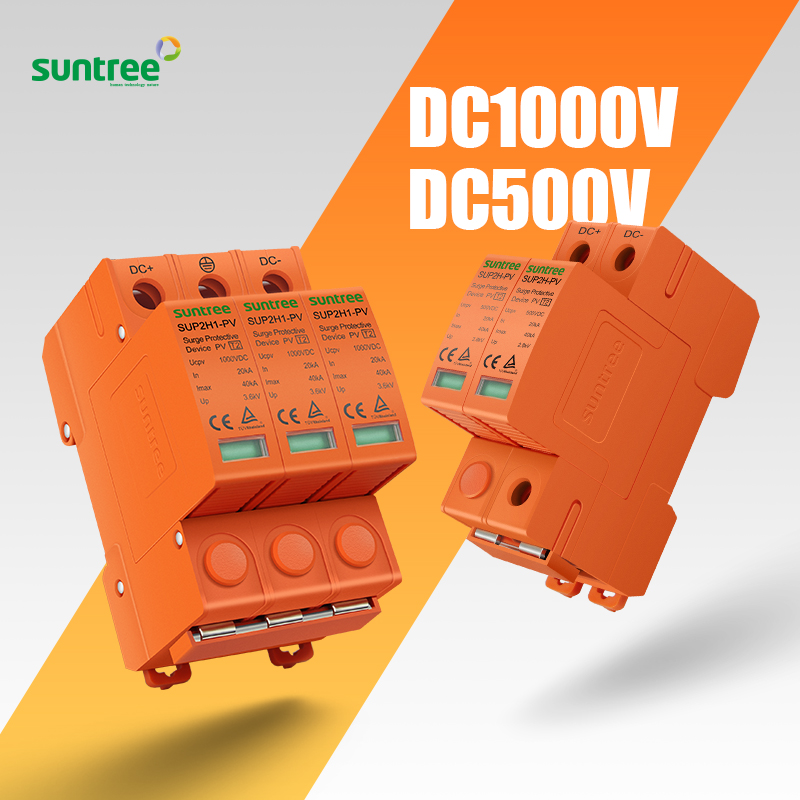

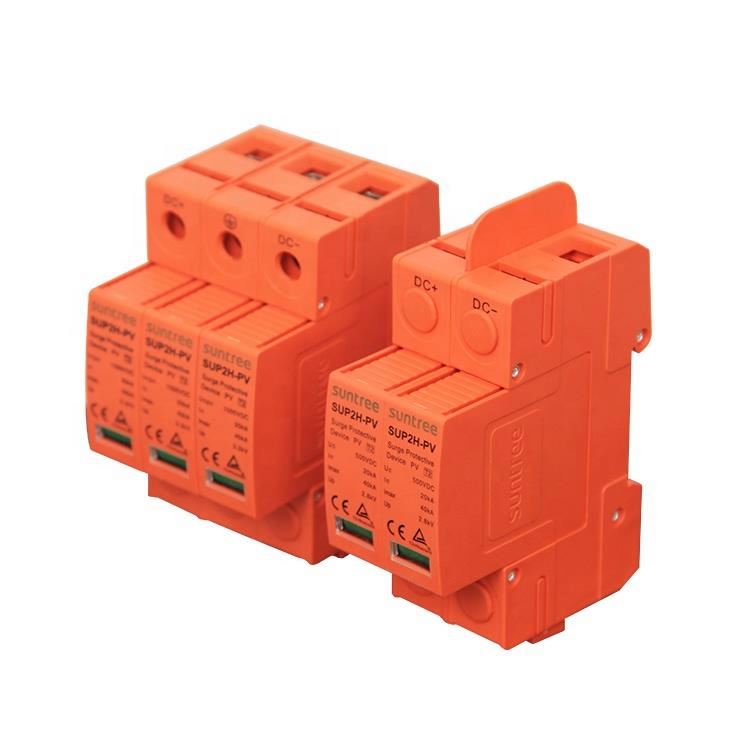

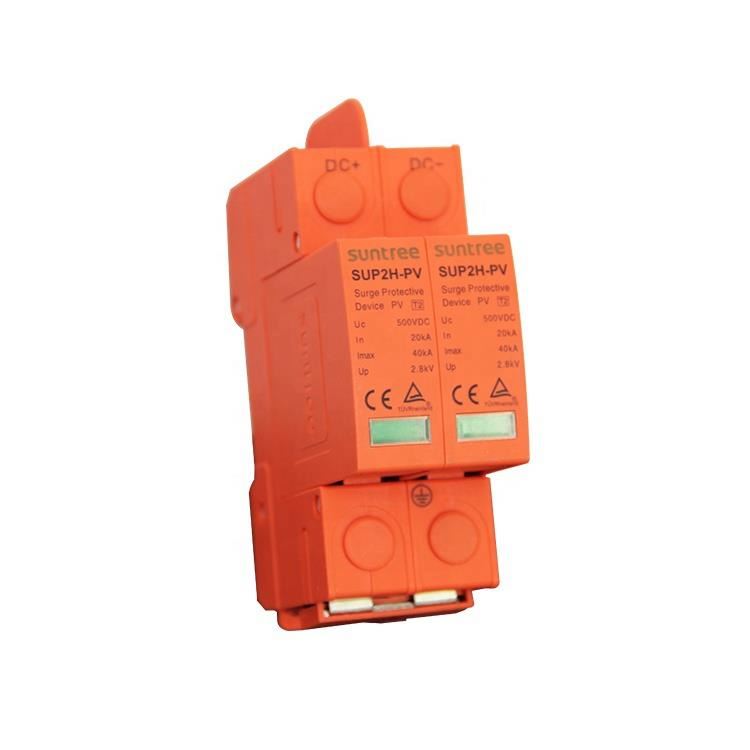

DC SPD 2P – 500V DC / 1000V DC Surge Protection Device
Product Description
Protect your solar PV system from lightning strikes and transient voltage surges with our DC Surge Protection Device (SPD) 2 Pole, available in 500V DC and 1000V DC models. Specifically engineered for photovoltaic (PV) systems, this Type II SPD provides reliable protection for solar panels, combiner boxes, charge controllers, hybrid inverters, battery energy storage systems (BESS), and other DC equipment.
Designed for fast surge suppression, the SPD diverts damaging overvoltage safely to earth, helping to prevent equipment damage, reduce downtime, and extend the lifespan of your solar installation.
Its compact 2-Pole DIN Rail design allows for quick installation in DC distribution boards and combiner boxes, making it an essential safety component for residential, commercial, and industrial solar power systems.
Key Features
- Available in 500V DC and 1000V DC
- 2 Pole (2P) design
- Type II DC Surge Protection Device
- Protects against lightning-induced surges and transient overvoltage
- High surge discharge capacity
- Ultra-fast response time
- DIN rail mounting for easy installation
- Visual status indicator (Green/Red)

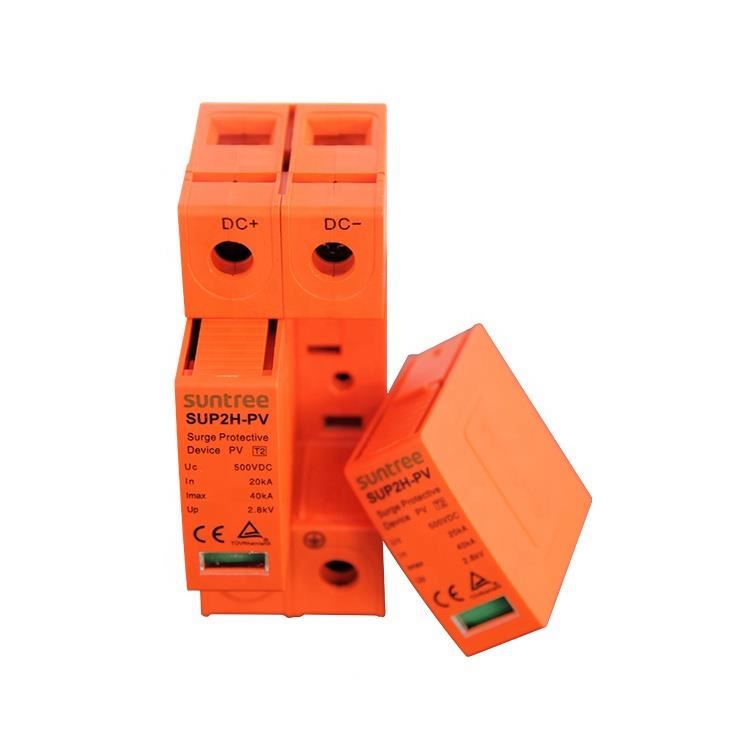

- Replaceable surge protection module (model dependent)
- Flame-retardant thermoplastic housing
- Long service life and maintenance-friendly design
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | DC Surge Protection Device (SPD) |
| Type | Type II |
| Rated Voltage (Uc) | 500V DC / 1000V DC |
| Number of Poles | 2 Pole (2P) |
| Nominal Discharge Current (In) | 20kA |
| Maximum Discharge Current (Imax) | 40kA |
| Voltage Protection Level (Up) | Low Residual Voltage |
| Response Time | ≤25ns |
| Mounting | 35mm DIN Rail |
| Status Indicator | Green / Red |
| Housing Material | Flame-Retardant Thermoplastic |
| Operating Temperature | -40°C to +80°C |
| Standard | IEC 61643-31 |
Applications
- Solar PV string protection
- DC combiner boxes
- Hybrid solar systems
- Off-grid solar installations
- Battery Energy Storage Systems (BESS)
- Solar charge controllers
- Inverter DC input protection
- Residential, commercial, and utility-scale solar power systems
Why Choose This DC SPD?
The DC SPD 2P 500V/1000V provides reliable protection against lightning strikes and switching surges, helping to safeguard expensive solar equipment and maintain uninterrupted system performance. With its compact design, fast response time, and high surge capacity, it is an essential safety device for every photovoltaic installation.
Package Includes
- 1 × DC Surge Protection Device (SPD)
- 2 Pole (2P)
- Available in 500V DC or 1000V DC
- DIN Rail Mounting Design
